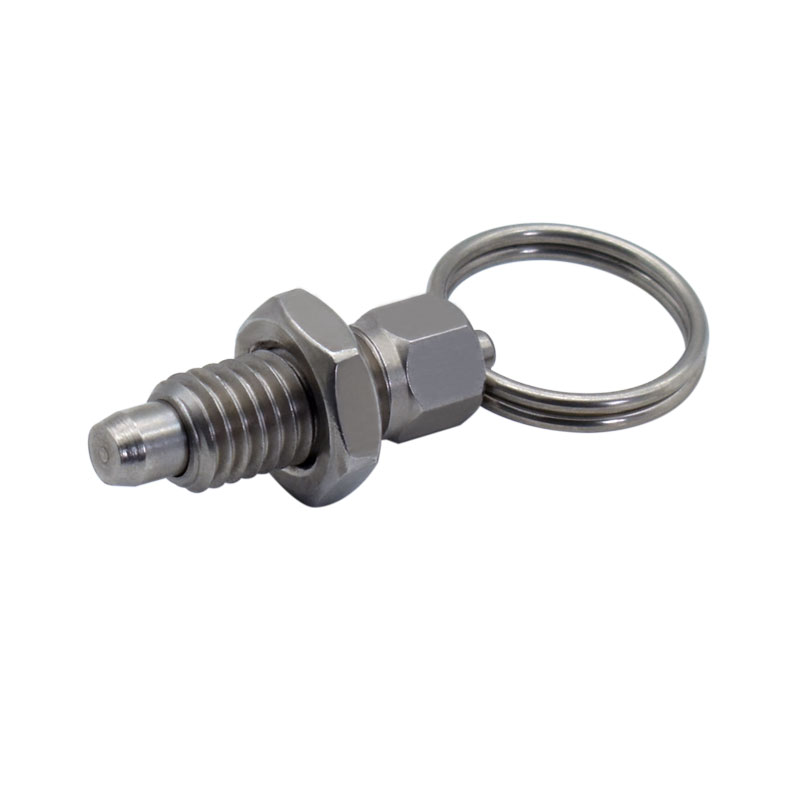

The Pull Ring Index Pin is a robust and versatile mechanical component designed for precise indexing and secure positioning in various industrial applications. Featuring a pull ring for easy handling, this pin is equipped with coarse teeth for reliable locking and indexing functionality. It is ideal for use in jigs, fixtures, machinery, and tooling systems that require a high level of accuracy and quick adjustments.

Key Features:

Pull Ring Design: The pull ring allows for effortless handling and quick engagement and disengagement, offering convenience in high-speed operations.
Coarse Teeth Locking Mechanism: The coarse teeth provide a strong and secure lock, preventing accidental disengagement while ensuring easy alignment and positioning.
Durable Construction: Made from high-quality steel or stainless steel for enhanced strength, durability, and corrosion resistance, even in demanding environments.
Precise Positioning: Offers accurate and repeatable indexing, making it perfect for applications requiring high precision in part alignment and positioning.
Versatile Application: Available in a variety of sizes and configurations, the pull ring coarse teeth index pin can be used in a wide range of applications, including CNC machines, automotive, and industrial manufacturing.
Applications:

Precision alignment and indexing in machining, jigs, and fixtures
Tooling and CNC machine setups
Locking and indexing in automotive and aerospace applications
Assembly lines and production processes
Heavy-duty machinery and equipment
Customer Benefits:
The Pull Ring Coarse Teeth Index Pin offers a highly reliable and easy-to-use solution for secure positioning and locking. Its coarse teeth ensure robust engagement, while the pull ring design makes it simple to operate, reducing setup times and enhancing operational efficiency.
