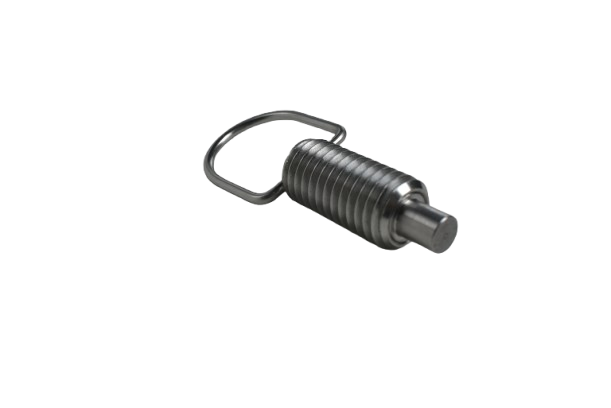

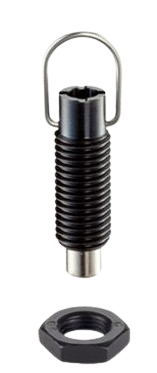

The Indexing Plunger With Pull Ring is a pullable locating pin commonly used in industrial equipment to enable quick positioning and release of components. The pull ring design improves operational efficiency and human-machine friendliness.
Structure and Composition:
Indexing Plunger: An industrial part used to position, fix, and lock the position of mechanical components.

Pull Ring: Installed on the top of the plunger for easy manual pulling, used to control the plunger's entry and exit.

Working Principle:
Under normal conditions, the plunger automatically pops out under the action of the internal spring and inserts into the corresponding hole to achieve positioning.

Manually pull the pull ring, and the plunger retracts, allowing the equipment to move or adjust freely.

Release the pull ring, and the plunger pops out again to complete the locking.

Indexing Plunger With Pull Ring is a positioning plunger with a manual pull ring that is widely used in mechanical equipment to help achieve fast and stable positioning and locking functions.
