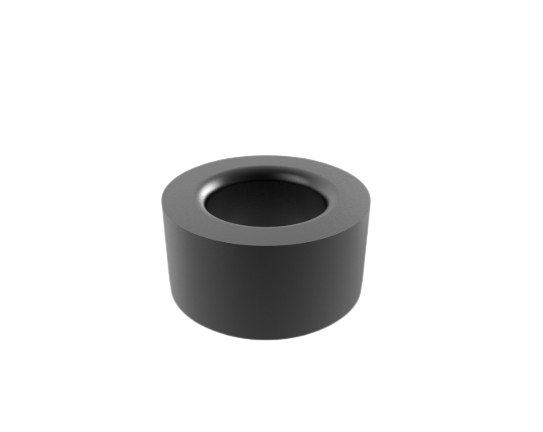

Ball Lock Liner

    MS5703
    The Ball Lock bushing is a precision component designed for use with the Ball Lock Pin. Its primary function is to provide guidance, positioning, and wear-resistant support for the ball lock pin, ensuring smooth insertion and maintaining precise alignment.

    Key Features:

    Precise Guidance: Ensures centring and stability during ball-lock pin insertion.

    High Wear Resistance: Typically manufactured from hardened steel or stainless steel, suitable for high-frequency use.

    Extended Service Life: Reduces direct friction between the pin and workpiece, protecting fixtures or moulds.

    Easy Installation: Compatible with rapid clamping and mould-changing systems.

    Application Areas:

    Mould-changing systems
    CNC fixtures and jigs
    Stamping dies
    Automated assembly and tooling equipment

    We can understand its operating principle by breaking down its name:

    Liner:

    This is a high-precision steel sleeve forming its main structure. It is permanently pre-installed within the tool holder and functions as an ‘interface’ or ‘socket’.

    Ball Lock:

    This constitutes its core technology. Within the sleeve lies a precision ball locking mechanism.

    This mechanism operates in conjunction with a dedicated locking/unlocking nut.

    Ball lock liner and ball lock shank simplify fixturing with repeatable, high-precision locking solutions.
    Quantity:
    Contact Now
    add to cart
    Ball Lock Liner is a sleeve or bushing installed on a fixture or tooling plate, designed to work with Ball Lock Pins. It achieves rapid and precise positioning and locking through the interaction of steel balls and pins.

    Achieve flawless positioning with ball lock liner and ball lock shank – precision locking made simple for every fixture.

    Functions
    • Positioning: Assists Ball Lock Pins in achieving accurate alignment, ensuring high repeatability in positioning;
    • Locking: The internal structure of the bushing automatically locks with the steel balls to prevent shifting;
    • Protection: Protects installation holes from wear, extending the service life of the fixture.
    Application Scenarios
    1. CNC machining centers
    2. Mold quick-change systems
    3. Automated assembly lines
    4. Quick-change systems for gauges/fixtures/jigs
    [Surface Treatment] Black Oxidized
    [Heat Treatment] RC62-64
    [Operating Temperature] -30°C to 200°C
    Trusted ball lock liner and ball lock shank – engineered for efficiency in CNC and automation systems.
    Ball lock liner and ball lock shank offer secure fit, easy release, and long-term durability.
    Reliable ball lock liner and ball lock shank – ideal for precision machining and rapid fixture setup.
    Ball lock liner and ball lock shank ensure tight tolerance and fast changeover in industrial applications.
    Choose ball lock liner and ball lock shank for seamless alignment and robust locking in any fixture system.
