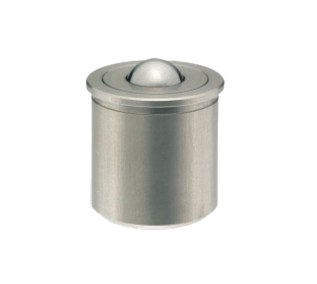

Ball Transfer Unit
MS3301
The Ball Transfer Unit is an industrial conveyor element consisting of one or more balls, with a free-spinning main ball at the top and a supporting ball or balls at the bottom, which enables objects to be moved easily in any direction. It is often mounted on conveyor tables, workbenches or handling equipment for smooth multi-directional conveying, rotation and positioning.
Main Features:
360°Universal rolling: objects can be moved in any direction, reducing friction.
Strong load capacity: can carry from light to heavy materials.
Durable material: commonly used carbon steel, stainless steel or engineering plastics, adapt to different environments.
Convenient installation: can be embedded in the conveyor table or mechanical equipment, high flexibility.
Core Components and How They Work Explained
A typical Ball Transfer Unit consists of three key components:
Load Ball:
This is an exposed, smooth-surfaced, large-diameter ball (usually made of steel, stainless steel, plastic, or nylon) that is in direct contact with and carries the weight of the object being transferred.
Small Balls:
Below the carrier ball, a series of small precision balls (similar to those in a ball bearing) are evenly spaced in a bowl-shaped chamber. These small balls support the carrier ball above.
Housing :
This is a strong metal (usually steel or stainless steel) housing, machined internally to a precise bowl profile, which holds all the small balls and carrier balls.
Boost productivity with our industrial-grade ball transfer units, perfect for logistic centers and packing lines.
Working Principle:
When a loaded object is pressed against the load ball and moved in any direction, friction causes the ball to rotate. The rotational force of the ball is transferred to the small ball at the bottom, which then rolls inside the bowl seat. This process converts sliding friction in all directions into rolling friction, resulting in nearly omni-directional, extremely labour-saving motion.
Main Features:
360°Universal rolling: objects can be moved in any direction, reducing friction.
Strong load capacity: can carry from light to heavy materials.
Durable material: commonly used carbon steel, stainless steel or engineering plastics, adapt to different environments.
Convenient installation: can be embedded in the conveyor table or mechanical equipment, high flexibility.
Core Components and How They Work Explained
A typical Ball Transfer Unit consists of three key components:
Load Ball:
This is an exposed, smooth-surfaced, large-diameter ball (usually made of steel, stainless steel, plastic, or nylon) that is in direct contact with and carries the weight of the object being transferred.
Small Balls:
Below the carrier ball, a series of small precision balls (similar to those in a ball bearing) are evenly spaced in a bowl-shaped chamber. These small balls support the carrier ball above.
Housing :
This is a strong metal (usually steel or stainless steel) housing, machined internally to a precise bowl profile, which holds all the small balls and carrier balls.
Boost productivity with our industrial-grade ball transfer units, perfect for logistic centers and packing lines.
Working Principle:
When a loaded object is pressed against the load ball and moved in any direction, friction causes the ball to rotate. The rotational force of the ball is transferred to the small ball at the bottom, which then rolls inside the bowl seat. This process converts sliding friction in all directions into rolling friction, resulting in nearly omni-directional, extremely labour-saving motion.
Quantity:
The Ball Transfer Unit is a mechanical element commonly used in conveying and handling systems. Its core function is to enable the free sliding of objects in multiple directions on a horizontal plane for positioning, steering, handling, loading and unloading operations.
Move heavy loads with ease using our durable ball transfer unit, ideal for conveyor systems and material handling platforms.
The Ball Transfer Unit usually consists of the following parts:
- Main ball (main ball): mounted at the top, it is in direct contact with the object and is responsible for carrying the load.
- Small steel ball (load-bearing ball): support the main ball inside the shell, play the role of rolling guidance and load dispersion.
- Shell: generally made of steel, stainless steel, aluminum, etc., used to fix the main ball and support structure.
- Mounting base or flange: used to mount the whole set on a platform or structure.

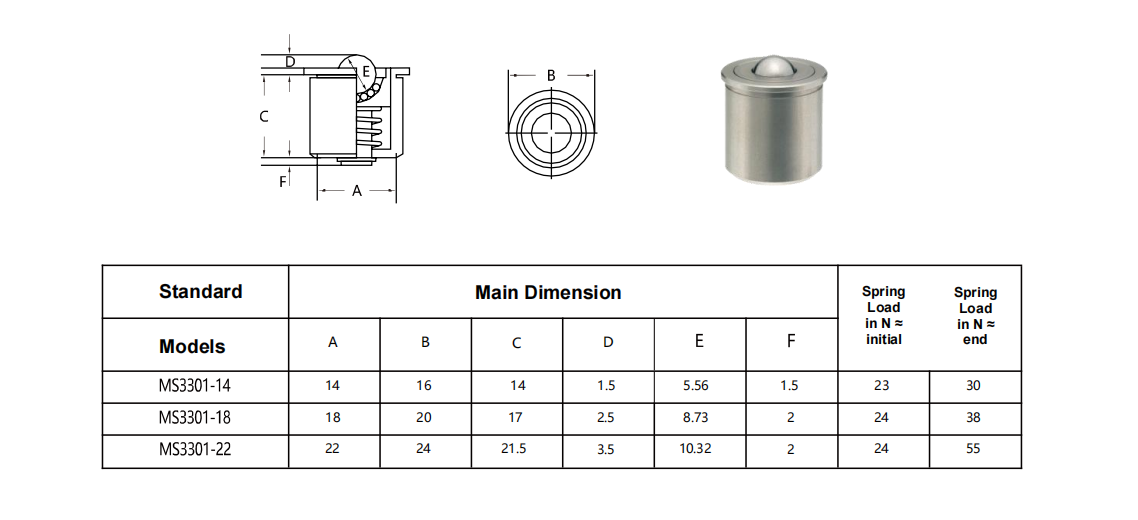

[Body]AISI 304.
[Adjusting Ring] AISI 304.
[Ball]AISI440C (HRC55~).
[Housing]AISI 304.
[Spring]AISI 631J1.
[Retaining Ring] AISI 304.
[CAUTION]Use only in the upward direction. Using it facing downward or sideways may
cause breakage of the product or poor ball operation. It is possible to move the travel portion
and bottom of the main ball, so please pay attention to the depth of the mounting hole.
