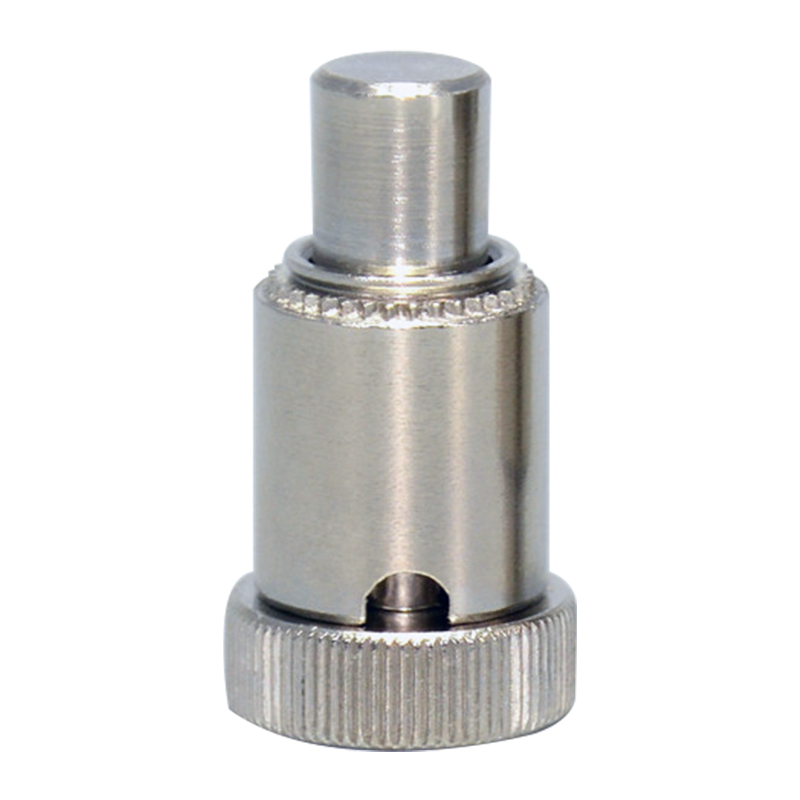

The Locating Pin (Thread-In Type) is a compact and versatile component designed for applications requiring secure positioning, indexing, and reliable spring force. This plunger features a threaded body for easy screw-in installation and a built-in spring mechanism to provide consistent pressure for locating, positioning, or holding components. Its compact design makes it suitable for a wide range of mechanical and industrial applications.

Key Features:

Thread-In Installation: The threaded body design ensures easy and secure installation into tapped holes, providing reliable positioning.
Built-In Spring Mechanism: Offers consistent spring force for precise and repeatable indexing or positioning tasks.
Durable Construction: Manufactured from high-quality materials such as stainless steel or alloy steel, ensuring excellent wear resistance and durability in demanding environments.
Compact Design: Its small size makes it ideal for applications with limited space while maintaining strong performance.
Versatile Application: Available with various thread sizes, ball diameters, and spring strengths to suit a wide range of requirements.
Applications:

Positioning and locating components in fixtures and tooling
Indexing mechanisms in machinery and equipment
Use in assembly lines, jigs, and fixtures
Precision locking and holding applications
Industrial, automotive, and aerospace systems
Customer Benefits:
The Locating Pin (Thread-In Type) offers a reliable and convenient solution for applications requiring consistent spring pressure and accurate positioning. Its durable construction and easy installation make it an indispensable component in many industrial and mechanical setups.
